Planetary concrete mixer

Features of planetary concrete mixer

1 Gearing system

Driving system consist of motor and hardened surface gear which is specialized designed by CO-NELE(patented ).Flexible coupling and hydraulic coupling(option) connects motor and gearbox.The gearbox is designed by CO-NELE(completely independent intellectual property rights owned ) absorbing European advanced technology.The improved model has lower noise,longer torque and more durable.Even in strict production conditions, the gearbox can distribute power effectively and evenly to each mix and device ,ensuring normal operation,high stability and low maintenance.

2 Motion track

The revolution and rotation speed of the blades have been extensively studied and tested to give the mixer a high output causing the segregation of materials with different grain size and weight.The movement of the material inside the trough is smooth and continuous.As shown in the picture ,the blades track covers the whole bottom of trough after a cycle.

3 Observing port

There is an observing port on the maintaining door.You can observe the mixing situation without cutting off power.

4 Mixing device

Compulsory mixing is realized by composite moves of extruding and overturning driven by rotating planets and blades.Mixing blades are designed in parallelogram structure (patented),which can be turned 180o for reuse to increase service life.Specialized discharge scraper has been designed according to discharge speed in order to increase productivity.

5 Discharging device

According to the different demands of customers,the discharging door can be opened by hydraulic,pneumatic or by  hands.The number of discharging door is three at most.And there is special sealing device on discharging door to ensure the sealing reliable.

6 The hydraulic power unit

A special designed hydraulic power unit is used to provide power for more than one discharging gates.On emergency,these discharging gates can be opened by hand.

7 Maintaining door and security device

In order to improve the security of using the product,reliable high-sensitive security switches are in the maintaining door to make the maintaining work safe and convenient.

8 Water spray pipe

The special designed sprayer is installed on the water pipe.The spraying water cloud can cover more area and also make the mixing more homogeneous.

9 Security identifier

Based on years of accumulated experience,a variety of security identification are attached to the mixer,user-friendly design concept ,enabling customers to use more secure,more at ease.

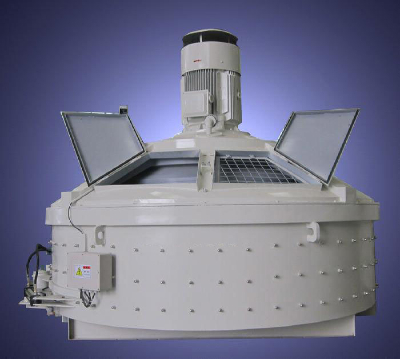

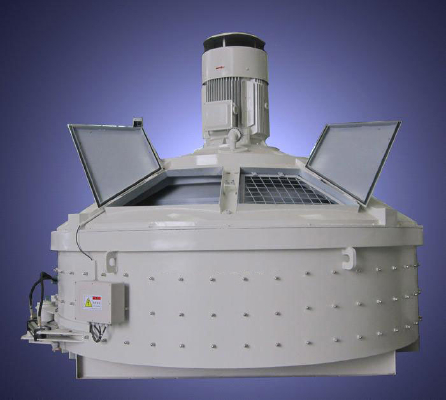

Photos of planetary concrete mixer
